Technical data: HBS/ADAP/xxx

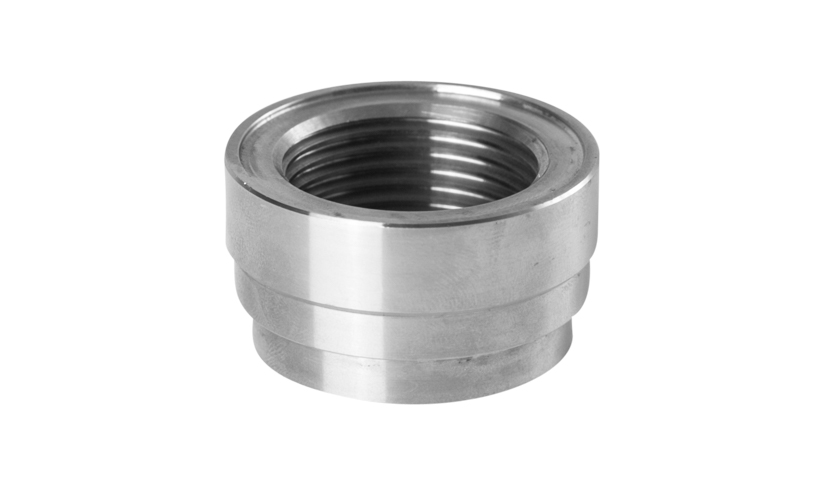

HB Products keeps various welding sleeves in stock for simple installation of HB Products switches and sensors. The range covers shorter and longer versions. In the long version, they are available in lengths of 50 and 150mm.
Click to open image!
 |
For mounting on pipes and tanks |
|
Produced in steel (S355N) or stainless steel (AISI 316) |
HBS/ADAP/WS/8
HBS/ADAP/WS/6
HBS/ADAP/WSS/6-50
HBS/ADAP/WSS/6-150
| Mechanical specifications | |
|---|---|
| Material WS | S355N |
| Material WSS | AISI 316 excl. HBS/ADAP/WSS/2-150 |
| Length | Thread type | Ordering code |
|---|---|---|
| 50 mm | 3/4" BSPP | HBS/ADAP/WS/6 |
| 25 mm | 1" BSPP | HBS/ADAP/WSS/8 |
| 37 mm | 3/4" NPT | HBS/ADAP/WSS/2 |
| 150 mm | 3/4" NPT (AISI 303) | HBS/ADAP/WSS/2-150 |

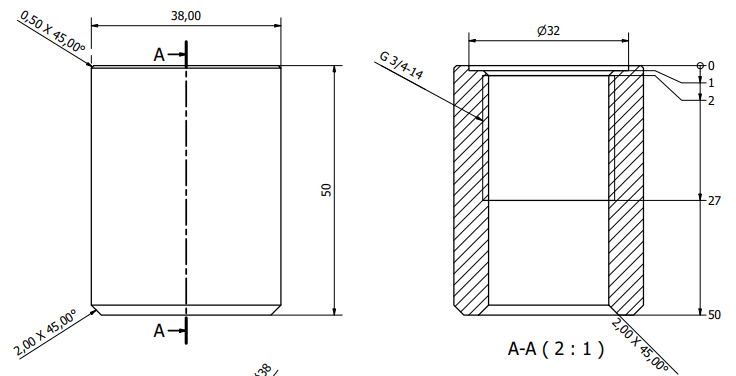

| 50 mm | 3/4" BSPP | HBS/ADAP/WSS/6-50 |
| 150 mm | 3/4" BSPP | HBS/ADAP/WSS/6-150 |
| 43 mm | 1" BSPP | HBS/ADAP/WSS/8-43 |
| 43 mm | 1" NPT | HBS/ADAP/WSS/9 |
