Technical data: HBPS

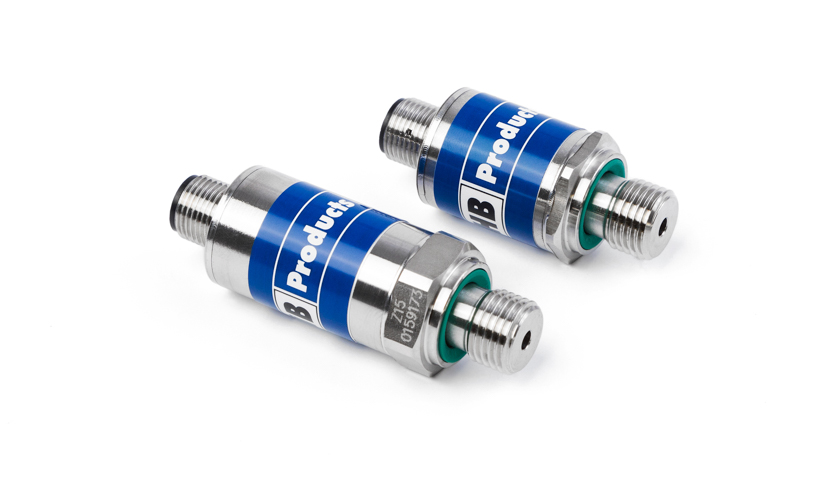

HBPS is a pressure sensor that is specially developed for the refrigeration industry. The sensor has a stainless membrane, and the housing is also made of stainless steel. It has a quick reaction time of < 2 ms, and it is accessible in 3 pressure ranges of 0...6 bar, -1...25 bar and -1...200 bar.
Click to open image!
 |
Minimal and compact design. |
| |

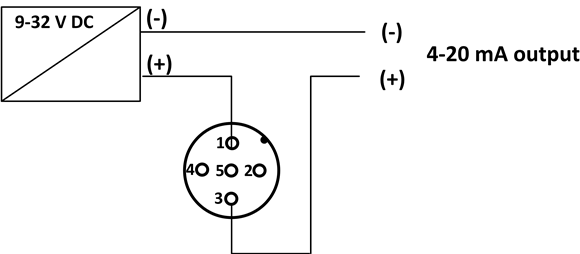

Simple wire connection - 2-wire technology - 4...20 mA. |
|
Refrigeration industry design - max pressure 200 bar. |
|
Temperature range: -40..+125°C. |
|
M12 plug connection - DIN 0627. |

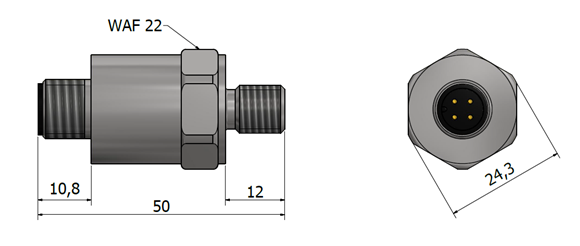

HBPS-6-1/4 & HBPS-25-1/4

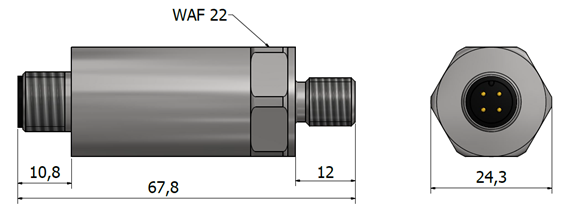

HBPS-200-1/4
| Electrical connection | |
|---|---|
| Plug | M12-DIN 0627 |
| Power supply | 9...32 V DC |
| Analog output | 4...20 mA |
| Pin surface treatment | Gold plated |
| Connection | 2-wire |
| Environmental conditions | |
| Ambient temperature | -40...+105°C |
| Refrigerant temperature | -40...+125°C |
| Max pressure | 0...6 bar -1...25 bar -1...200 bar |
| Protection degree | IP67 |
| Vibrations | IEC 60068-2-6 (4g) |
| Mechanical specifications | |
| Thread connection | G 1/4” - Form E |
| Thread connection | G 1/4” - NPT |
| Material - liquid parts | AISI 304 |
| Material - electronic parts | AISI 304 |
| Approvals | |
| EMC test | EN 61000-2 |
| Pressure range | Thread type | Ordering code |
|---|---|---|
| -1...5 bar | 1/4" G - Form E | HBPS-5-1/4-G/E |
| -1...5 bar | 1/4" NPT | HBPS-5-1/4-NPT |
| 0...6 bar | 1/4" G - Form E | HBPS-6-1/4-G/E |
| 0...6 bar | 1/4" NPT | HBPS-6-1/4-NPT |
| -1...9 bar | 1/4" G - Form E | HBPS-9-1/4-G/E |
| -1...9 bar | 1/4" NPT | HBPS-9-1/4-NPT |
| -1...25 bar | 1/4" G - Form E | HBPS-25-1/4-G/E |
| -1...25 bar | 1/4" NPT | HBPS-25-1/4-NPT |
| -1...40 bar | 1/4" G - Form E | HBPS-40-1/4-G/E |
| -1...40 bar | 1/4" NPT | HBPS-40-1/4-NPT |
| -1...100 bar | 1/4" G - Form E | HBPS-100-1/4-G/E |
| -1...100 bar | 1/4" NPT | HBPS-100-1/4-NPT |
| -1...200 bar | 1/4" G - Form E | HBPS-200-1/4-G/E |
| -1...200 bar | 1/4" NPT | HBPS-200-1/4-NPT |
