Inline Housing - Vapor Quality Sensor

Technical data: HBX-DX-IN / HBX-CR-IN

HB products has developed the unique vapor quality sensor, which is the only sensor able to directly measure the liquid content of liquid in the evaporator output. The sensor works both in pump circulated and DX systems and can optimize the efficiency and capacity to a new level.

Evaporator control
The optimal evaporator is not filled with liquid refrigerant like you often have in pump circulated refrigerant systems with circulation ratios above 1.5. The optimal evaporator is not dry like a lot of superheat-controlled evaporators.
By measuring the liquid content in the evaporator output and using this measurement to control the liquid feed.

Most refrigeration systems operate most of the time in part load and especially during part load the efficiency is typically rather poor and can be optimized significantly. Pump circulated systems fills the evaporator with liquid which reduce heat transfer by 50 % and increases the pressure loss which increase energy consumption. For pump circulated systems an energy saving of minimum 20% is typical for optimized systems, and much more on systems without circulation control.

In DX systems a larger part of the evaporator is used for superheating and the superheat is increased which reduce capacity and increase the power consumption dramatically. We have documentation showing an energy saving of 20% during full load and 50% during part load for a DX ammonia system. Link to the documentation.

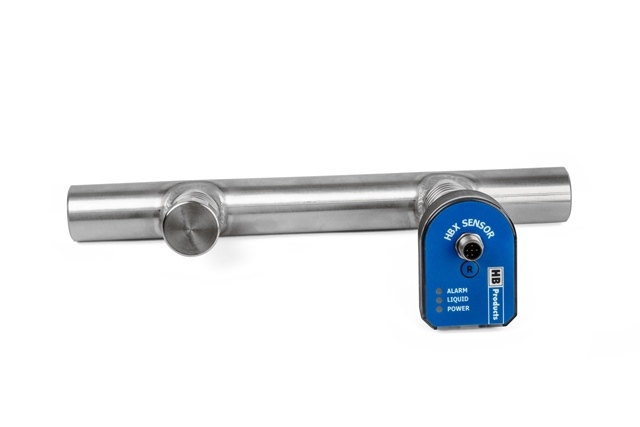

Inline
The straight version called Inline is available from 1” to 2” and the sensor accepts flow in both directions. The pressure loss in the sensor is very low due to the straight flow and smooth internal design. Mounting can be both horizontal and vertical position. The sensor is made in stainless steel and can be butt welded (TIG) or brazed into the system.

Product selection guide
To find the right part number to purchase please use our selection guide in the shop (link below), product overview under "ordering code" or send our Product Manager Henrik Kudsk a system description and he will guide you to the right part number. Please use the "Product Specification Form" (find it under the "downloads" tab on this product page) and e-mail it to sales@hbproducts.dk

Shop image

Product features

Measures the volumetric concentration of gas in a gas/liquid mixture
Balanced evaporator control to achieve semi-flooded operation with high heat transfer
Able to control an expansion valve directly with simultaneously analog 4-20mA output to a PLC
Can be used to optimize and control both DX systems and overfeed systems
Instant measurement and analog output
Can be used for all common refrigerants

Applications

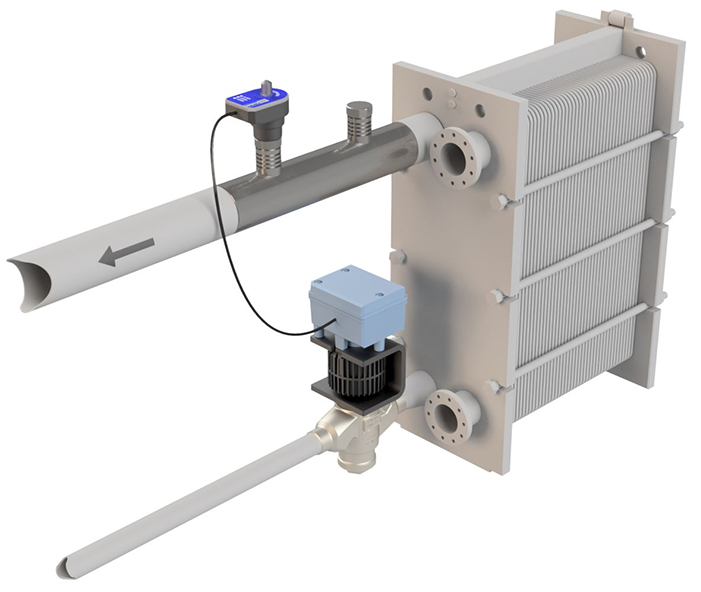

HBX DX Inline web

Specifications

Connection Diagram

Connection Diagram

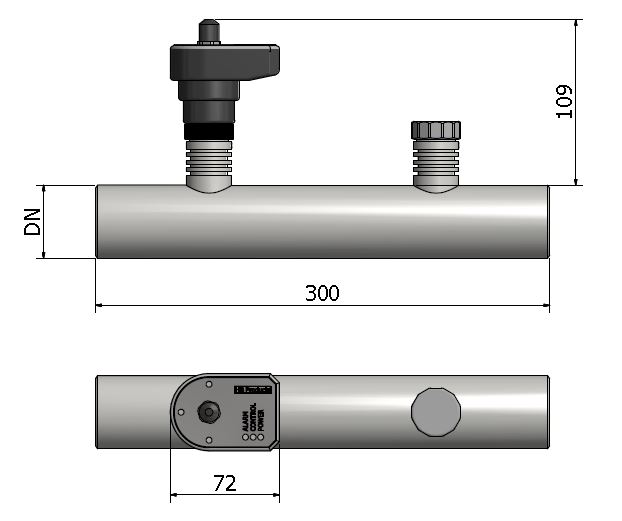

Drawing



Maal HBX Inline





Power supply
Voltage24 V AC/DC
Current consumptionMax 600 mA
Electronic connectionM12, 5 pins
Output
Analog output4-20 mA
LED indicationGreen, yellow, and red
Environmental conditions
Ambient temperature-30...+50°C
Liquid temperature-60...+80°C
Max. pressure100 bar
Degree of protectionIP65
Vibrations IEC 60068-2-6 (4g)
Mechanical specifications
Material - mechanical partsAISI 304 / PTFE
Material - electronic partsNylon 6 (PA)
DimensionsSee drawing
Approvals
EMC testEN 61000-2
Cable specification (power supply)
Cable size5 m - 5 x 0.34 mm2
Cable glandsPG7 / M8
Cable resistance500 Ohm/Km
Configurations
Configuration HB Tool
Tool to be used HBX software
Valve control (Modulating valve)
Signal to valve4-20 mA
Valve regulationPI-regulation
Valve control (PWM)
Signal to valve24V AC/DC
PWM period0-120 s (default 6 s.)
Valve control (Stepper motor)
Stepper motor steps25-5000 steps
Stepper motor speed2-40 m/s
Stepper motor phase current0-750 mA
Stepper motor holding current0-250 mA
Cable specification (valve control)
Length3 m (118”)
Cable size3 x 0.75 mm2
Cable glandsPG7 / M8

Ordering code

Pipe diameterRefrigerantDesignDirect valve controlOrdering code
DN 25 NH3, HFC, HFO & CFCDXN.A.HBX-DX-IN-DN25
DN 40 NH3, HFC, HFO & CFCDXN.A.HBX-DX-IN-DN40
DN 50 NH3, HFC, HFO & CFCDXN.A.HBX-DX-IN-DN50
DN 25 NH3, HFC, HFO & CFCOverfeedN.A.HBX-CR-IN-DN25
DN 40 NH3, HFC, HFO & CFCOverfeedN.A.HBX-CR-IN-DN40
DN 50 NH3, HFC, HFO & CFCOverfeedN.A.HBX-CR-IN-DN50
DN 25 NH3, HFC, HFO & CFCDXModulatingHBX-DX/C-IN-DN25
DN 40 NH3, HFC, HFO & CFCDXModulatingHBX-DX/C-IN-DN40
DN 50 NH3, HFC, HFO & CFCDXModulatingHBX-DX/C-IN-DN50
DN 25 NH3, HFC, HFO & CFCOverfeedModulatingHBX-CR/C-IN-DN25
DN 40 NH3, HFC, HFO & CFCOverfeedModulatingHBX-CR/C-IN-DN40
DN 50 NH3, HFC, HFO & CFCOverfeedModulatingHBX-CR/C-IN-DN50
DN 25 NH3, HFC, HFO & CFCDXPWMHBX-DX/PWM-IN-DN25
DN 40 NH3, HFC, HFO & CFCDXPWMHBX-DX/PWM-IN-DN40
DN 50 NH3, HFC, HFO & CFCDXPWMHBX-DX/PWM-IN-DN50
DN 25 NH3, HFC, HFO & CFCOverfeedPWMHBX-CR/PWM-IN-DN25
DN 40 NH3, HFC, HFO & CFCOverfeedPWMHBX-CR/PWM-IN-DN40
DN 50 NH3, HFC, HFO & CFCOverfeedPWMHBX-CR/PWM-IN-DN50
DN 25 NH3, HFC, HFO & CFCDXStepperHBX-DX/S-IN-DN25
DN 40 NH3, HFC, HFO & CFCDXStepperHBX-DX/S-IN-DN40
DN 50 NH3, HFC, HFO & CFCDXStepperHBX-DX/S-IN-DN50
DN 25 NH3, HFC, HFO & CFCOverfeedStepperHBX-CR/S-IN-DN25
DN 40 NH3, HFC, HFO & CFCOverfeedStepperHBX-CR/S-IN-DN40
DN 50 NH3, HFC, HFO & CFCOverfeedStepperHBX-CR/S-IN-DN50
DN 25 CO2, BUTANE & PROPANEDXN.A.HBX-DX-IN-T-DN25
DN 40 CO2, BUTANE & PROPANEDXN.A.HBX-DX-IN-T-DN40
DN 50 CO2, BUTANE & PROPANEDXN.A.HBX-DX-IN-T-DN50
DN 25 CO2, BUTANE & PROPANEOverfeedN.A.HBX-CR-IN-T-DN25
DN 40 CO2, BUTANE & PROPANEOverfeedN.A.HBX-CR-IN-T-DN40
DN 50 CO2, BUTANE & PROPANEOverfeedN.A.HBX-CR-IN-T-DN50
DN 25 CO2, BUTANE & PROPANEDXModulatingHBX-DX/C-IN-T-DN25
DN 40 CO2, BUTANE & PROPANEDXModulatingHBX-DX/C-IN-T-DN40
DN 50 CO2, BUTANE & PROPANEDXModulatingHBX-DX/C-IN-T-DN50
DN 25 CO2, BUTANE & PROPANEOverfeedModulatingHBX-CR/C-IN-T-DN25
DN 40 CO2, BUTANE & PROPANEOverfeedModulatingHBX-CR/C-IN-T-DN40
DN 50 CO2, BUTANE & PROPANEOverfeedModulatingHBX-CR/C-IN-T-DN50
DN 25 CO2, BUTANE & PROPANEDXPWMHBX-DX/PWM-IN-T-DN25
DN 40 CO2, BUTANE & PROPANEDXPWMHBX-DX/PWM-IN-T-DN40
DN 50 CO2, BUTANE & PROPANEDXPWMHBX-DX/PWM-IN-T-DN50
DN 25 CO2, BUTANE & PROPANEOverfeedPWMHBX-CR/PWM-IN-T-DN25
DN 40 CO2, BUTANE & PROPANEOverfeedPWMHBX-CR/PWM-IN-T-DN40
DN 50 CO2, BUTANE & PROPANEOverfeedPWMHBX-CR/PWM-IN-T-DN50
DN 25 CO2, BUTANE & PROPANEDXStepperHBX-DX/S-IN-T-DN25
DN 40 CO2, BUTANE & PROPANEDXStepperHBX-DX/S-IN-T-DN40
DN 50 CO2, BUTANE & PROPANEDXStepperHBX-DX/S-IN-T-DN50
DN 25 CO2, BUTANE & PROPANEOverfeedStepperHBX-CR/S-IN-T-DN25
DN 40 CO2, BUTANE & PROPANEOverfeedStepperHBX-CR/S-IN-T-DN40
DN 50 CO2, BUTANE & PROPANEOverfeedStepperHBX-CR/S-IN-T-DN50
