USB Programming Cable

Product Series: HBxC-USB

The programming cable HBxC-USB is used when configuring sensors.(Always included when ordering HBLT-Wire)

The cable works as a connection between a computer and all sensors with a 5 pin M12 plug. It does work for 4 pin M12 (used on 90-240 V sensors).

To be able to use the cable, the HB tool must be installed on the computer.

You can download the HB Tool free of charge here

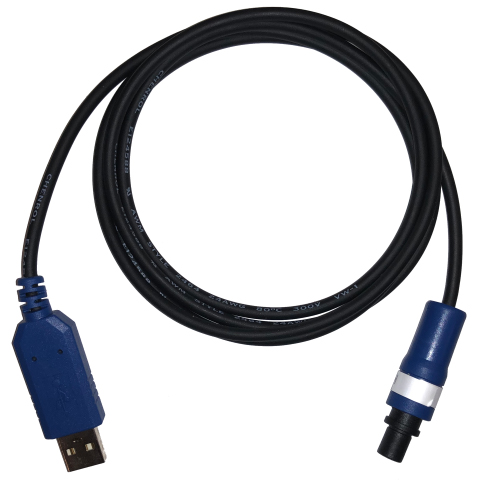

Shop image



Product features

Required to configure HB sensors

Specifications

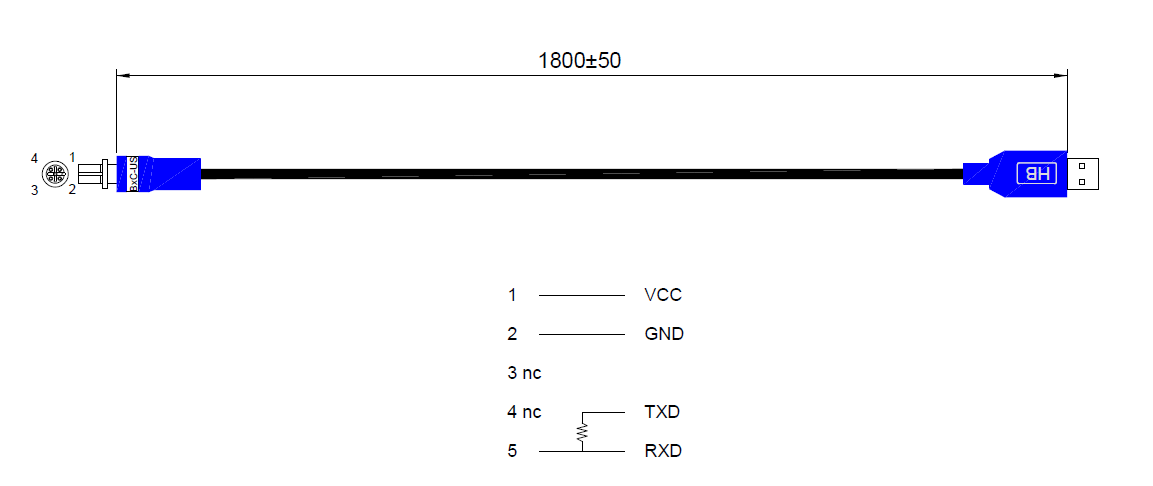

Drawing

HBXC USB Profiltegning

Mechanical specifications
PlugUSB plug, FTDI TTL-232R-3.3V-PCB
PlugM12 5 FEMALE
CableUL2464 AWG24x4C, USB RS232 Cable
Length1,8 m
MaterialPVC

Ordering code

LengthOrdering code
1,8 m USB Programming cableHBxC-USB
