Temperature Sensor - Wall Mount

Technical Data: HBTS-TR-W | HBTS-TR/CABLE-2M

HBTS-TR-W and HBTS-TR/CABLE-2M are together with  HBTS-TR a new family of temperature sensors with integrated transmitter. By use of our HB-TOOL (software) it is easy to configure the range in temperature where the 4-20 mA signal shall operate. The two versions are for wall mount with either direct measurement or with cable for hot spot measurement. All sensors with PT1000 high accuracy measurement.

Shop image

View the embedded image gallery online at:
https://www.hbproducts.dk/en/products/item/1219-wall-mounted-temperature-sensor-with-transmitter-4-20ma#sigProIdfe4ce7a13d

Product features

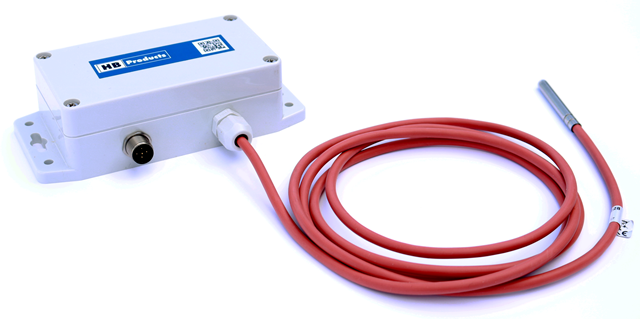

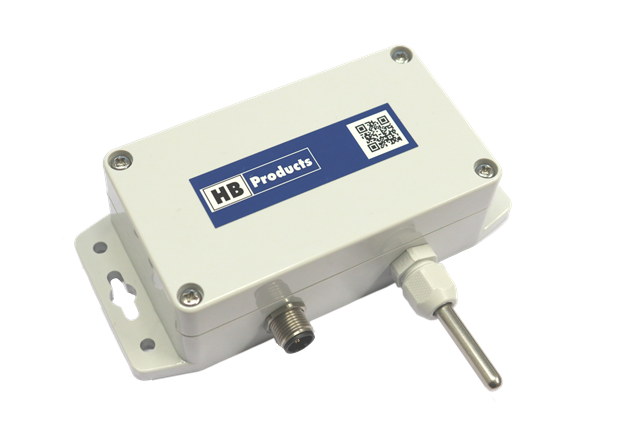

  Available in two types as wall mount with either direct measurement or with cable for hot spot measurement

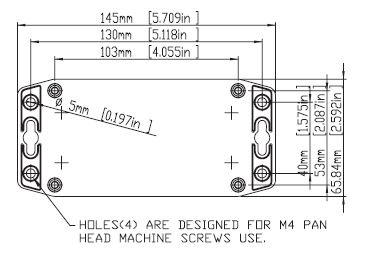

To be mounted on a wall with 4 screws or directly on a selected spot
Easy to configure the range in temperature where the 4-20 mA signal shall operate
Emits a 4-20 mA signal to a PLC
Ambient temperature: -30...+50°C  / Temperature range (only cable version): -40°C...+130°C (peak 150°C)
