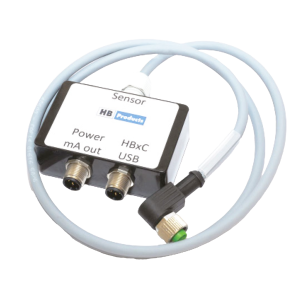

Product Series: HBxC-splitbox
Diagnostics box M12 / USB.
For HBOC/OR/LC/DX/DF/CP Sensors.
For setup while sensor is in operation.

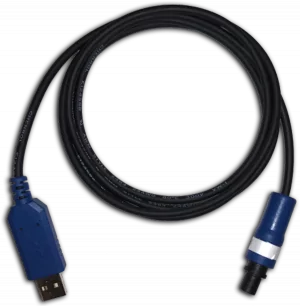

Product Series: HBxC-USB
The programming cable HBxC-USB is used when configuring sensors.(Always included when ordering HBLT-Wire)
The cable works as a connection between a computer and all sensors with a 5 pin M12 plug. It does work for 4 pin M12 (used on 90-240 V sensors).
To be able to use the cable, the HB tool must be installed on the computer.
You can download the HB Tool free of charge here

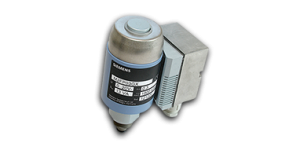

Product series: M2FP03GX
M2FP03GX is a modulating valve for the connection to the refrigerant level control sensor type HBLC. It can be used for all refrigerants and has a fast reaction time. The modulating valve requires only supply and connection from the HBLC.
The Siemens M2FP Series is for capacity requirements of 6 – 354 Kvs [m3 /h]. We recommend Siemens valves for evaporators larger than 150 kw.

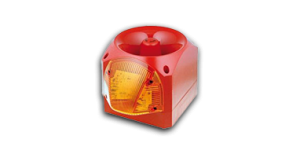

Technical data: Sounder beacon
This combination of a siren and flash can be used together with a gas detection sensor. The sensor has IP66 rating and is suited for outdoor installation.
The sound can be configured in 64 tones and the maximum output is 105dB(A) with a peak value up to 113 dB(A) The alarm has three alarm stages.
The unit has a high-power LED flash as visual signal.

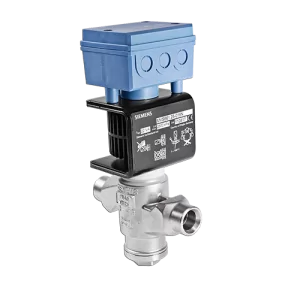

Product series: MVS661
The MVS661..N refrigerant valve is designed for modulating control of refrigerant circuits including chillers and heat pumps. It is suitable for use in expansion, hot-gas and suction throttle applications. In addition to ammonia (R717), the valve can handle all standard safety refrigerants, noncorrosive gases / liquids and CO2 (R744). It is not suited for use with inflammable refrigerants.
MVS661 can be controlled and supplied directly by a HBX vapor quality sensor or a HBSLC/HBSLT Level sensor. This reduce cabling cost, PLC programming cost and PLC hardware cost.
We recommend using the "Siemens Modulating Valve Selection Program" for calculating valve size [kW], which can be downloaded for free under the "Downloads" tab.
We recommend Siemens valves for evaporators larger than 150 kw when using ammonia.

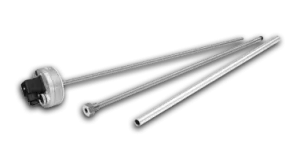

Technical data: Long Stroke Sensor
The long stroke sensor is used for analogue linear measurements of industrial refrigeration compressors in connection with capacity control. The sensor is available in both a standard and an EX edition. It has a measurement travel of max. 50-600 mm, and can be calibrated for a minimum measurement travel of 50-80mm. The sensor sends an analogue 4-20 mA signal corresponding to max. movement. The sensor is designed for harsh environments in a refrigeration system, and it can handle vibrations and high pressure up to 100 bar.
