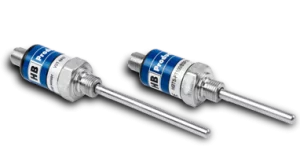

Technical data: HBTS

HBTS is a temperature sensor in accordance with DIN 60751, and it is available in two variants, PT100 and PT1000 – DIN B – class 3. The sensor is designed for industrial applications where servicing of the electronics can be carried out without emptying the system of refrigerant. The sensor is delivered with a 60 & 90 mm sensor element length and a 6 mm sensor diameter. Sensor well is included with the sensor.

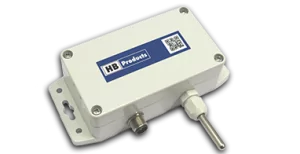

Technical Data: HBTS-TR-W | HBTS-TR/CABLE-2M

HBTS-TR-W and HBTS-TR/CABLE-2M are together with  HBTS-TR a new family of temperature sensors with integrated transmitter. By use of our HB-TOOL (software) it is easy to configure the range in temperature where the 4-20 mA signal shall operate. The two versions are for wall mount with either direct measurement or with cable for hot spot measurement. All sensors with PT1000 high accuracy measurement.

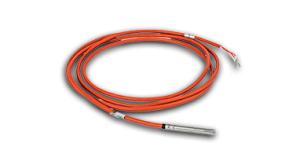

Technical data: HBTS/Cable

The Cable Temperature Sensors are used as signal sensors for electronic thermostats, regulators and thermometers.

The sensors can be used virtually anywhere where you want to measure or monitor temperature. The sensor can be mounted in a sensor well or directly.

The HBTS-PT1000/cable is also included as a spare part for the HBDF-MK2 sensor.
