NH3 Liquid Level Switch

Technical data: HBSR-SSR-2

The HBSR-SSR-2 is a Level Switch designed for detecting ammonia and brine refrigerants. It is typically installed on refrigerant vessels, pump separators, or heat exchangers. The sensor is engineered to withstand high pressure and low temperatures, making it ideal for industrial applications.

Key features

  • Liquid temperature range: Operate across a temperature range of -30°C to 50°C (-22°F to 122°F).
  • Pressure tolerance: Rated for pressures up to 100 bar (1450 psi).
  • Power supply: Compatible with a 90–240 V AC power source at 50/60 Hz.
  • Split design: Simplifies installation and diagnostics; electronic parts can be removed with two screws.
  • LED indicators: Provides a clear visual signal when refrigerant is detected, improving monitoring and safety.

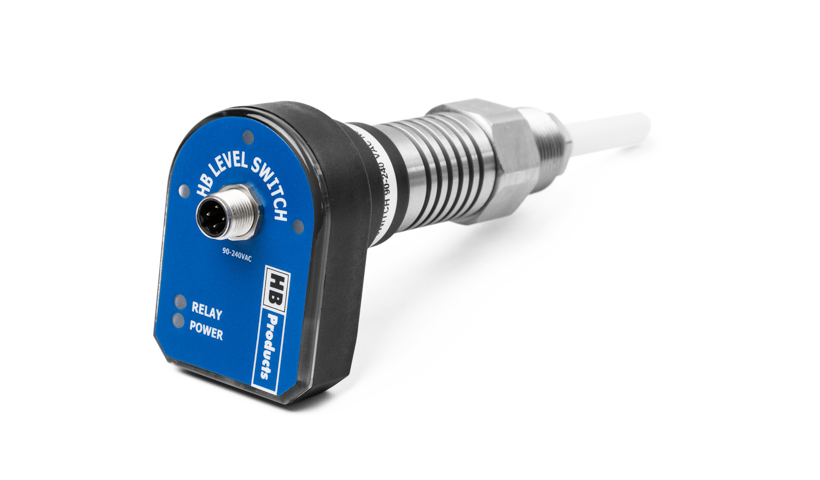

Click to enlarge image NH3 Refrigerant switch- 90.jpg

Click to open image!

View the embedded image gallery online at:
https://www.hbproducts.dk/en/products/item/783-nh3-water-alchohol-liquid-level-switch-90-240-v-ac#sigProId49d6c51a8e

Product features

Proven sensor technology with solid state output contact function NO or NC.
Designed for the industrial application - max pressure 100 bar.
Universal power supply 90...240 V AC - 50/60 Hz.
Clear indication with LED when refrigerant is detected.
Split design which makes it easy to install and make diagnostic on.

Applications

 HBSR-HV

Specifications

Connection diagram

SSR-2 Connection Diagram



Drawing

HBSR SSR Maalsat

Power supply
Voltage90...240 V AC
Max. current consumption40 W
Plug connectionM12 - DIN 0627
Output
Output typeSolid State Relay
Contact functionNC or NO
Environmental conditions
Ambient temperature-30...+50°C
Max pressure150 bar
Protection degreeIP54 *
VibrationsIEC 60068-2-6 (4g)
Mechanical specifications
Thread connection3/4”
Material - liquid partsAISI 304 / PTFE
Material- electronic partsNylon 6 (PA)
House designFront
Approvals
EMC testEN 61000-2
*For outdoor and low temperature application use low temperature type with built-in heater

Ordering code

OutputThread typeOrdering code
Solid state relay - NO1/2" NPTHBSR-SSR-2/NO-1
Solid state relay - NO3/4" NPTHBSR-SSR-2/NO-2
Solid state relay - NO1/2" BSPPHBSR-SSR-2/NO-5
Solid state relay - NO3/4" BSPPHBSR-SSR-2/NO-6
Solid state relay - NC1/2" NPTHBSR-SSR-2/NC-1
Solid state relay - NC3/4" NPTHBSR-SSR-2/NC-2
Solid state relay - NC1/2" BSPPHBSR-SSR-2/NC-5
Solid state relay - NC3/4" BSPPHBSR-SRR-2/NC-6
Spare parts for HBSR-SSR-2
Electronic part for HBSR-SSR-2/NO HBSR-SSR-2/NO-EL
Electronic part for HBSR-SSR-2/NC HBSR-SSR-2/NC-EL

Downloads

Quick guide - HBSR-SSR-2

Instruction manual (UK) - HBSR-SSR-2
