Liquid Level Sensor - HFC, HFO & CFC

Technical data: HBLC-HFC

The HBLC-HFC sensor is specifically designed for measuring HFC, HFO, and CFC refrigerant levels in chillers, evaporators, or condensers - and transmits this information via a 4-20 mA analog signal. Although pre-configured for R134, it can be adjusted to detect other types of HFC, HFO, or CFC refrigerants.

Key features

  • Liquid temperature range: Operate across a temperature range of 0°C to 145°C (32°F to 293°F).
  • Pressure tolerance: Rated for pressures up to 100 bar (1450 psi).
  • Power supply: The sensor operates on a 24 V DC power supply.
  • LED indicators: Provides clear visual indicators for power supply and alarm status.
  • Split design: Simplifies installation and diagnostics; electronic parts can be removed with two screws.
  • Easy configuration: Configuration with a PC using HB Tool software.

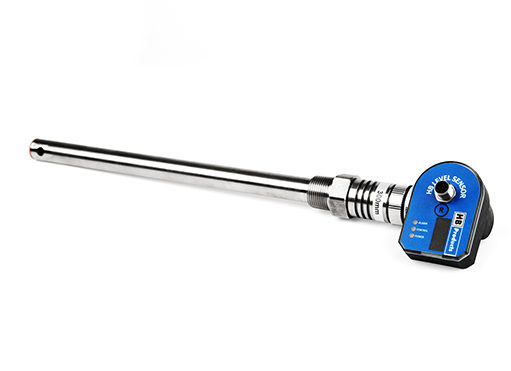

Shop image

View the embedded image gallery online at:
https://www.hbproducts.dk/en/products/item/773-hfc-hfo-cfc-liquid-level-sensor-4-20ma#sigProId181ce719df

Product features

Complete solution with sensor and transmitter in one unit.
Simple to install by one thread sleeve. A cost optimised solution.
LED indication of power supply and alarm status.
Unique split design which make it easy to install and make diagnostic.

Specifications

Standard versions

All sensors has an analog output

Sensor with M12 connector

Spec 1

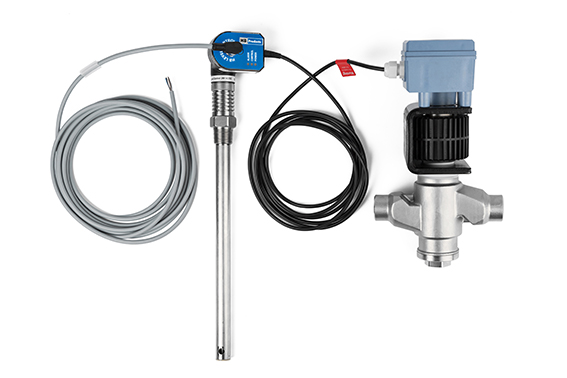

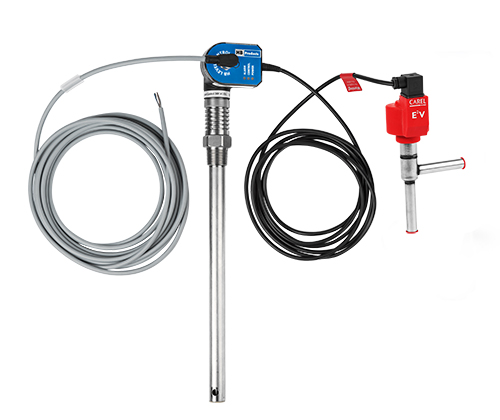

Control versions

Spec 2

  • /C for modulating valve
  • /S for stepper motor
  • /PWM for pulse modulating valve



Drawing

HBLC dimensions

Power supply
Voltage24 AC/DC + 10%
Energy consumptionMax 600 mA
Plug connectionM12, 5 pins - DIN 0627
Output
Analog output4-20 mA
Alarm outputPNP, 1 A
Alarm contact functionNO/NC
Environmental conditions
Ambient temperature-30...+50°C
Max. pressure100 bar
Protection degreeIP65
VibrationsIEC 60068-2-6 (4g)
Mechanical specifications
Thread connection3/4”
Material - liquid partsAISI 304 / PTFE
Material - electronic partsNylon 6 (PA)
TypeAngle
Approvals
EMC testEN 61000-2
Indication
LED indicationLED 1 x green, 1 x yellow and 1 x red
Accessories
M12 cabel - 5 mHBxC-M12/5
Cable specificationPUR - 5 x 0,34 mm2

Ordering code

LengthThread typeOrdering code
200 mm3/4” NPTHBLC-HFC-2-2
200 mm3/4” BSPPHBLC-HFC-2-6
300 mm3/4” NPTHBLC-HFC-3-2
300 mm3/4" BSPPHBLC-HFC-3-6
400 mm3/4” NPTHBLC-HFC-4-2
400 mm3/4" BSPPHBLC-HFC-4-6
500 mm3/4” NPTHBLC-HFC-5-2
500 mm3/4" BSPPHBLC-HFC-5-6
600 mm3/4” NPTHBLC-HFC-6-2
600 mm3/4" BSPPHBLC-HFC-6-6
700 mm3/4” NPTHBLC-HFC-7-2
700 mm3/4" BSPPHBLC-HFC-7-6
800 mm3/4” NPTHBLC-HFC-8-2
800 mm3/4" BSPPHBLC-HFC-8-6
900 mm3/4” NPTHBLC-HFC-9-2
900 mm3/4" BSPPHBLC-HFC-9-6
1000 mm3/4” NPTHBLC-HFC-10-2
1000 mm3/4" BSPPHBLC-HFC-10-6
1100 mm3/4” NPTHBLC-HFC-11-2
1100 mm3/4" BSPPHBLC-HFC-11-6
1200 mm3/4” NPTHBLC-HFC-12-2
1200 mm3/4" BSPPHBLC-HFC-12-6
1300 mm3/4” NPTHBLC-HFC-13-2
1300 mm3/4" BSPPHBLC-HFC-13-6
1400 mm3/4” NPTHBLC-HFC-14-2
1400 mm3/4" BSPPHBLC-HFC-14-6
1500 mm3/4” NPTHBLC-HFC-15-2
1500 mm3/4" BSPPHBLC-HFC-15-6
1700 mm3/4” NPTHBLC-HFC-17-2
1700 mm3/4" BSPPHBLC-HFC-17-6
2000 mm3/4” NPTHBLC-HFC-20-2
2000 mm3/4" BSPPHBLC-HFC-20-6
2500 mm3/4” NPTHBLC-HFC-25-2
2500 mm3/4" BSPPHBLC-HFC-25-6
3000 mm3/4” NPTHBLC-HFC-30-2
3000 mm3/4" BSPPHBLC-HFC-30-6
Electronic part for HBLC-HFCWith LED displayHBLC-HFC-EL-LED

Downloads

Instruction manual - HBLC-HFC

Drawing (STEP file) - HBLC-HFC
