Miscellaneous

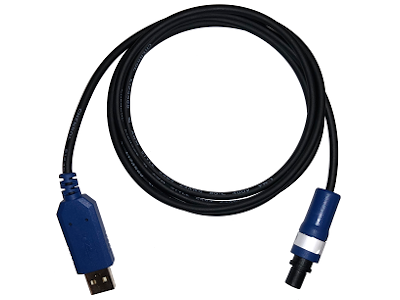

Programming cable for HB tool
Drawing: HBxC-USB V3-C

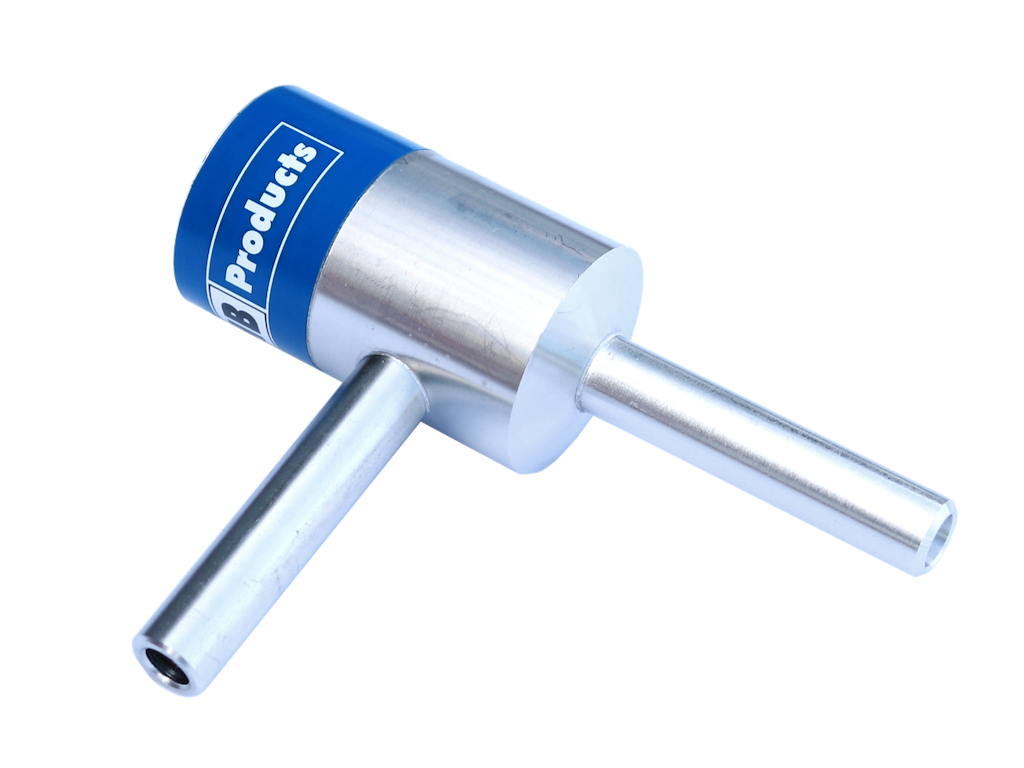

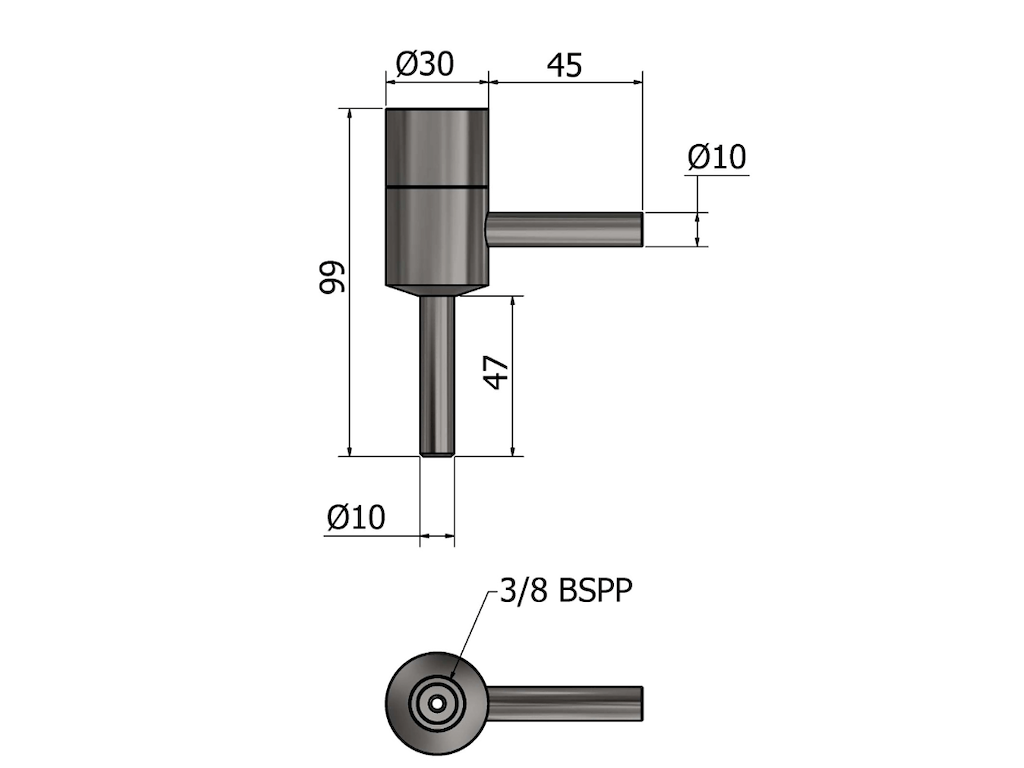

Ejector for oil return systems MK2
Ejector with 3/8 BSPP 0,05 L/Min, 10mm
Rated to 120 Bar

Ex Barrier KFD2-STC4-EX1-Y2-283684
hbxc-m12

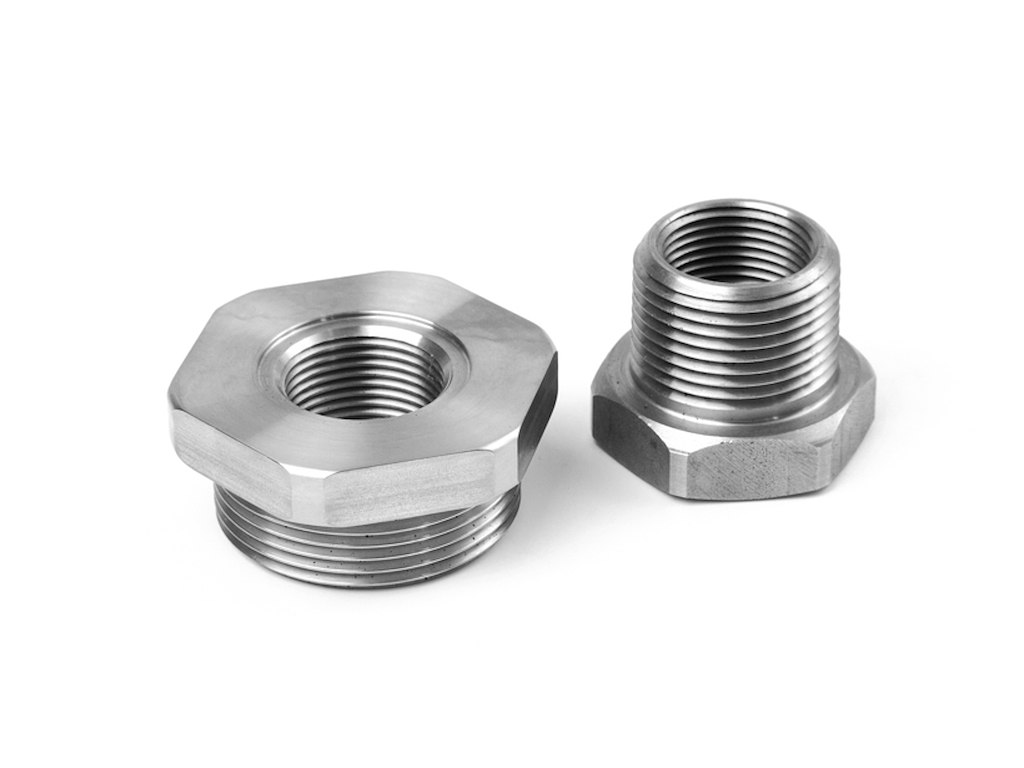

1"BSPP -> 3/4"BSPP adap. with alu gasket

5 cord cable w/ M12 plug, 0° connector
Length: 5 meter. Outer material: PUR

Conf. only -Adaptor plug from DIN to M12
For use with HBTS-TR product range
and together with HBxC-USB cable

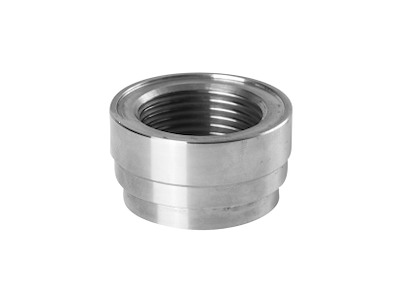

Stainless Steel Welding Socket
Length: 37mm
Thread: 3/4" NPT AISI 316

Diagnostics box M12 / USB
For HBOC/OR/LC/DX/DF/CP Sensors
For setup while sensor is in operation

Welding Socket, Mat. S355n (EN10025-3)
Suitable for alu gasket (26x32x2.0mm)
Thread: 3/4" BSPP, With 3.1 Certificate

Stainless Steel Welding Socket
Length: 50mm
Thread: 3/4" BSPP (G) AISI 316

Conversion cable DIN->M12
For easy conversion from HBLT-A1 wiring
to HBLT-Wire (4 pin DIN to 5 pin M12)

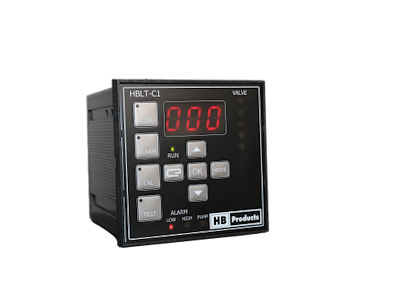

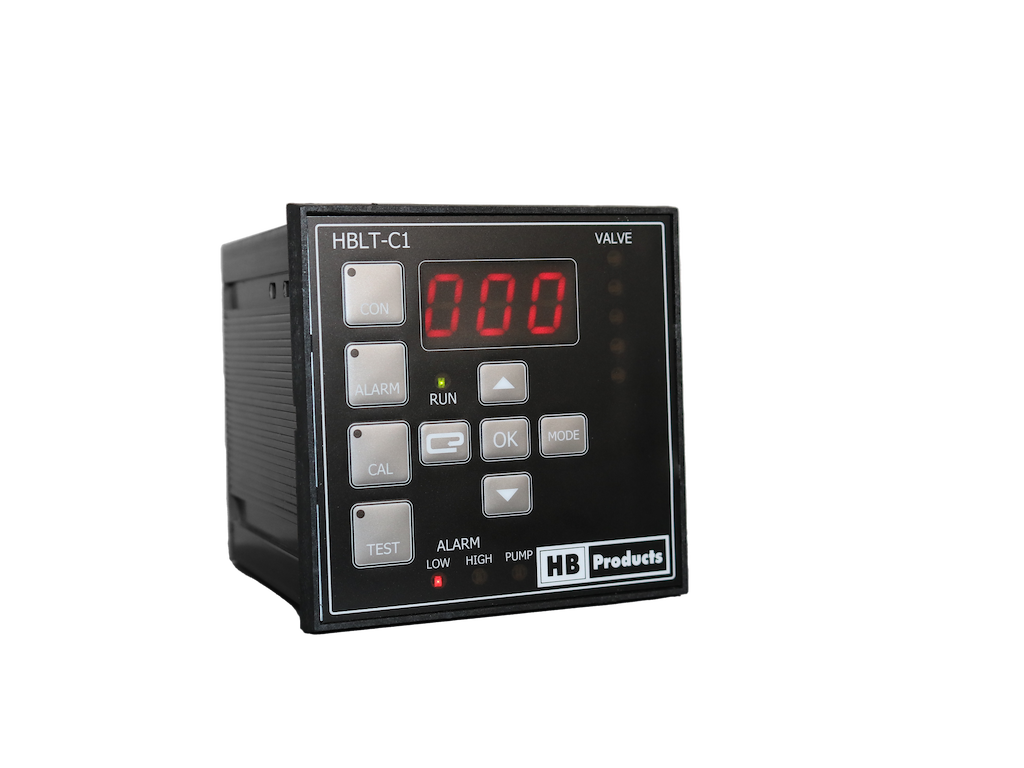

Level Controller
For front panel mounting
Supply voltage: 24 V AC/DC

1"BSPP -> 3/4"NPT adap. with alu gasket

Stainless Steel Welding Socket
Length: 43mm, With.3.1 certificate
Thread: 1" NPT AISI 316

Level Controller in enclosure
For wall mounting
Supply voltage: 90-240 VAC

Controller for pH Sensor
For front panel mounting
Supply voltage: 24 V AC/DC

5 cord cable w/ M12 plug, 90° connector
Length: 10 meter. Outer material: PUR

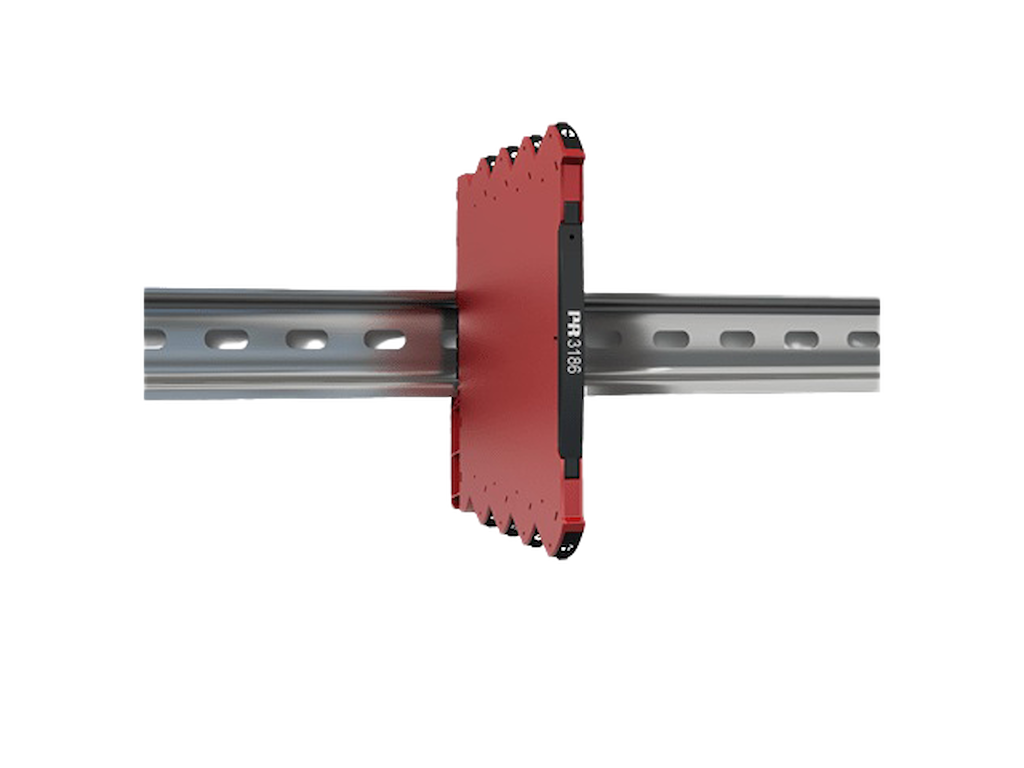

Galvanic isolator - 2 wire sensors
1 channel - loop powered
only suited for the two-wire sensors

5 cord cable with M12 plug
Length: 10 meter extension cable

2-Port modulating pilot valve to control
Main valves. PN32, Thread M24x1,5mm
electronic connection needed in addition
