Vapor quality
Reducing energy consumption is not about new components. It is about control
Written by: Michael Elstrøm
How vapor quality changes performance in both overfeed and DX systems
Energy prices are increasing, but most refrigeration systems are still operated the same way they always have.
Most systems are inefficient at part load
Refrigeration systems rarely operate at full load. Most of the time, they operate in part load, and that is exactly where inefficiencies appear.
In most systems circulation typically increases when load drops. That means more liquid, less boiling and higher pressure loss.
You are moving liquid — not creating cooling.
What happens at part load
- Increased circulation ratio
- Reduced boiling in evaporator
- Higher pressure drop
- Lower suction pressure
- Higher compressor energy consumption
The core problem: no real measurement
Most systems do not measure what actually matters: how much liquid leaves the evaporator. Instead, they rely on indirect parameters like pressure and temperature.
That leads to overfeeding — because it is safe, but safe is not the same as efficient.
Vapor quality control replaces assumptions with data

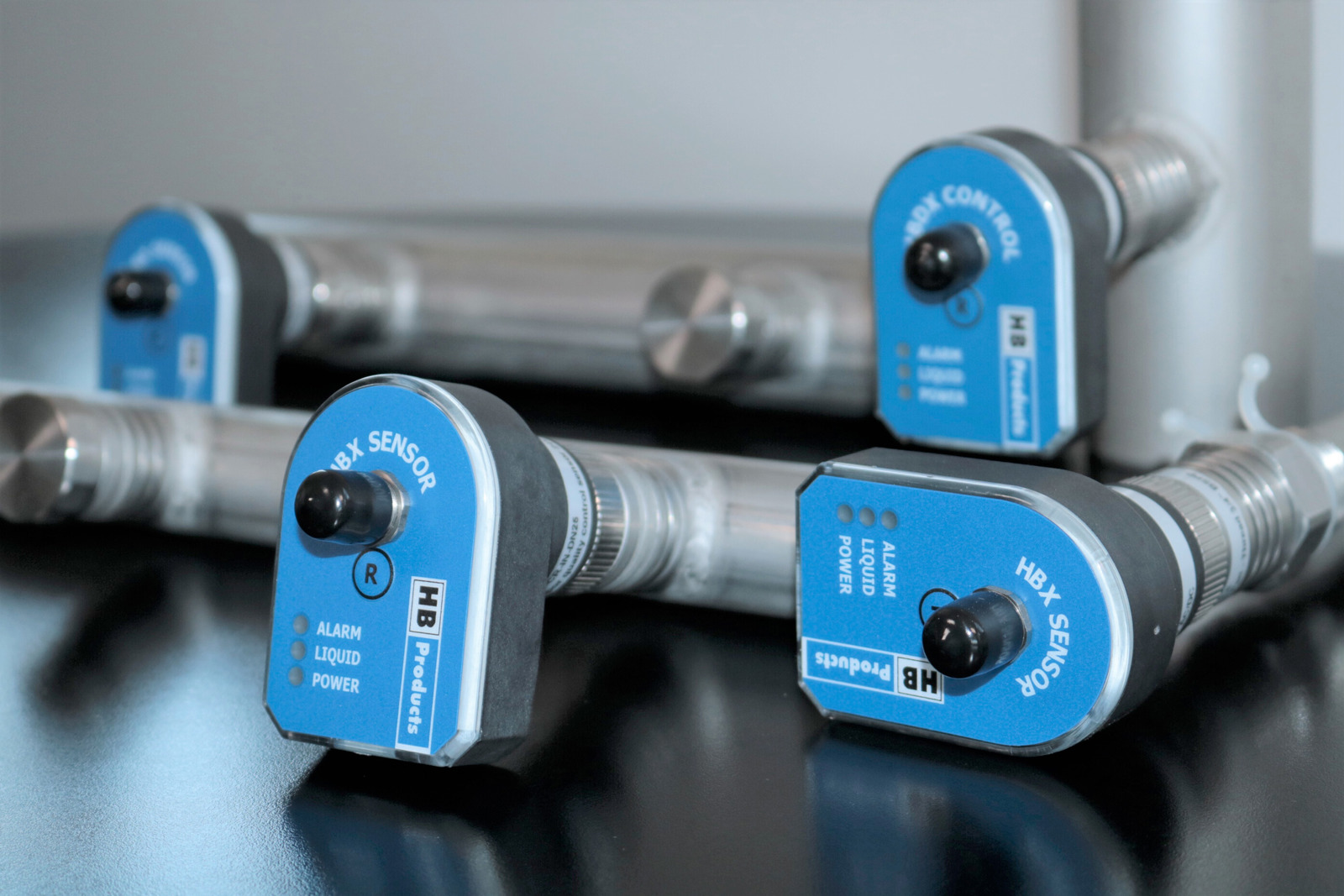

A vapor quality sensor measures the actual liquid content in the gas-liquid mix leaving the evaporator. This measurement is used to control the liquid feed directly.
The effect is simple:
- Circulation is reduced
- Boiling increases
- Pressure loss decreases
- Energy consumption drops
What vapor quality control enables
- Control based on real liquid content
- Optimized circulation ratio
- Maximum heat transfer
- Lower pressure loss
- Reduced energy consumption
Overfeed systems: reduce circulation, increase performance
In pump circulated systems, efficiency depends on keeping the circulation ratio as low as possible. But only if liquid distribution remains stable. Optimal performance is achieved when boiling is intensive and gas content is high. But without control, systems operate with too much liquid.
With vapor quality control, circulation is reduced without losing stability.
Another issue appears in part load: risers filled with liquid. If gas velocity is too low, liquid cannot be transported upwards.
The result:
- Blocked risers
- Increased pressure drop
- Reduced capacity
By controlling liquid feed based on vapor quality, the riser remains functional.
DX systems: efficiency comes from avoiding superheat
In DX systems, the main inefficiency comes from superheat. Superheat protects the compressor — but reduces heat transfer.
Every degree of superheat increases power consumption by approx. 3%.
Vapor quality control allows you to avoid unnecessary superheat while still protecting the system.
DX system impact
- Lower superheat
- Lower pressure loss
- Higher efficiency
- Reduced refrigerant charge
- Better performance at part load
Energy savings are significant — but predictable
The savings depend on system design and operating conditions. But typical improvements are 20–50%, with examples up to 80% when replacing old systems. This is not just an optimization, it is a change in how the system is controlled.
Conclusion
Most systems already have the components needed for high efficiency, but they lack measurements and control. When you control based on vapor quality, the system behaves differently:
- More stable
- More efficient
- Less dependent on safety margins
The technology is not new. But the way it is used makes all the difference.
